Gel Series

Gel Battery Series

Voltage :2V, 6V, 12V

Capacity :FP Type: 12V12AH~12V28AH ; LFP Type: 12V33AH ~ 12V250AH; CFP Type: 2V100AH~2V3000AH

Charge voltage: Cycle use: 2.30~2.35V/cell; Float use: 2.25~2.30V/cell

Charge current: The initial current less then 0.3CA

Gel Battery Summary

The FirstPower gel battery uses the sealed gel technology and is designed for high reliable, maintenance-free power for renewable energy applications. Depending on the advantage gel technology, optimum grid and plate design, the FirstPower gel battery offers highest power and reliability for your equipments.

Typical Applications

•Water pumping •Cathodic protection •Communications •Solar & Windsystem •Electric powered vehicles •Golf cars •Commercial deep cycle applications •Pow

General Technical Specifications

Model	Nominal Voltage (V)	Capacity (AH)	Internal Resistance (mOhm)	Dimensions（mm/in）								Terminal		Weight ±4%(Kg)
				Length		Width		Height		Total Height		Terminal		Weight ±4%(Kg)
				mm	in	mm	in	mm	in	mm	in	Type	Position	Kg	Lbs
FPG12180	12	18	17.5	181	7.13	77	3.03	153	6.02	167	6.57	T8	D	5.4	11.90
FPG12240	12	24	20	166	6.54	175	6.89	112	4.41	125	4.92	T8	D	7.8	17.20
FPG12280	12	28	15	166	6.54	175	6.89	112	4.41	125	4.92	T8	D	8.4	18.52
FPG12240A	12	24	14	165	6.5	125	4.92	162	6.38	175	6.89	T8	D	8.8	19.40
FPG12280A	12	28	12	165	6.5	125	4.92	162	6.38	175	6.89	T8	D	9.2	20.28
LFPG6100	6	100	3.3	194	7.64	170	6.69	205	8.07	205	8.07	T9	A	15.8	34.83
LFPG6190	6	190	2.4	243	9.57	187	7.36	253	9.96	276	10.87	T11	B	31.5	69.45
LFPG1233	12	33	14.5	195	7.68	130	5.12	146	5.75	158	6.22	T9	C	10.2	22.49
LFPG1240	12	40	9.5	197	7.76	165	6.5	155	6.1	170	6.69	T9	D	12.8	28.22
LFPG1255	12	55	8.5	229	9.02	138	5.43	201	7.91	215	8.46	T9	C	17.5	38.58
LFPG1265	12	65	7.5	350	13.78	167	6.57	155	6.1	179	7.05	T9	C	21.5	47.40
LFPG1270	12	70	7.8	260	10.24	168	6.61	202	7.95	215	8.46	T9	C	25	55.12
LFPG1275	12	75	7.5	260	10.24	168	6.61	202	7.95	215	8.46	T9	C	25.5	56
LFPG1280	12	80	7	306	12.05	169	6.65	202	7.95	215	8.46	T9	C	28	61.73
LFPG1290	12	90	5.5	306	12.05	169	6.65	202	7.95	215	8.46	T9	C	31	68.34
LFPG12100	12	100	5.2	330	12.99	171	6.73	197	7.76	215	8.46	T9	C	32	70.55
LFPG12110	12	110	5	330	12.99	171	6.73	217	8.54	235	9.25	T9	C	33	72.75
LFPG-12120	12	120	5.5	409	16.1	176	6.93	205	8.07	225	8.86	T11	C	38	83.75
LFPG12140	12	134	4.7	342	13.46	172	6.77	262	10.31	280	11.02	T11	C	41	90.39
LFPG12150	12	150	4.6	485	19.09	172	6.77	220	8.66	240	9.45	T11	C	45	99.21
LFPG12160	12	160	4.5	530	20.87	207	8.15	204	8.03	214	8.43	T11	F	54.5	120.15
LFPG12180	12	180	4	530	20.87	207	8.15	204	8.03	214	8.43	T11	F	57	125.66
LFPG12200	12	200	3.5	522	20.55	238	9.37	203	7.99	221	8.7	T11	E	65	143.30
LFPG12250	12	250	3	521	20.51	269	10.59	203	7.99	221	8.7	T11	E	75.5	166.45
LFPG1250FT	12	50	7.2	277	10.91	106	4.17	221	8.7	221	8.7	T9	E	17	37.48
LFPG12100FT	12	100	6.5	506	19.92	110	4.33	224	8.82	239	9.41	T9	E	30.5	67.24
LFPG12100AFT	12	100	9	395	15.55	110	4.33	271	10.67	286	11.26	T9	E	28.5	62.83
LFPG12110AFT	12	110	6.5	395	15.55	110	4.33	271	10.67	286	11.26	T9	E	31	68.34
LFPG12150FT	12	150	5.5	551	21.69	110	4.33	271	10.67	287	11.3	T11	E	46	101.41
LFPG12180FT	12	180	3.5	546	21.5	125	4.92	308	12.13	323	12.72	T11	E	55	121.25
CFPG2100	2	100	0.9	171	6.73	72	2.83	206	8.11	209	8.23	T10	G	6	13.23
CFPG2150	2	150	0.7	171	6.73	102	4.02	206	8.11	211	8.31	T10	G	8.5	18.74
CFPG2200	2	200	0.95	173	6.81	109	4.29	330	12.99	365	14.37	T10	G	14	30.86
CFPG2300	2	300	0.8	171	6.73	151	5.94	330	12.99	365	14.37	T10	G	19.5	42.99
CFPG2400	2	400	0.65	210	8.27	171	6.73	330	12.99	365	14.37	T10	H	26.5	58.42
CFPG2500	2	500	0.55	241	9.49	171	6.73	330	12.99	365	14.37	T10	H	31.5	69.45
CFPG2600	2	600	0.5	302	11.89	175	6.89	330	12.99	365	14.37	T10	H	36.5	80.47
CFPG2800	2	800	0.4	410	16.14	175	6.89	330	12.99	365	14.37	T10	I	50	110.23
CFPG21000	2	1000	0.3	475	18.7	175	6.89	330	12.99	365	14.37	T10	I	62	136.69
CFPG21500	2	1500	0.22	400	15.75	350	13.78	345	13.58	382	15.04	T10	J	95	209.44
CFPG22000	2	2000	0.2	490	19.29	350	13.78	345	13.58	382	15.04	T10	K	140	308.65
CFPG23000	2	3000	0.13	710	27.95	350	13.78	345	13.58	382	15.04	T10	K	192	423.29
CFPG2200S	2	200	0.9	206	8.11	103	4.06	355	13.98	390	15.35	T10	G	15.5	34.17
CFPG2250S	2	250	0.8	206	8.11	124	4.88	355	13.98	390	15.35	T10	G	19	41.89
CFPG2300S	2	300	0.75	206	8.11	145	5.71	355	13.98	390	15.35	T10	G	21	46.30
CFPG2350S	2	350	0.7	206	8.11	124	4.88	471	18.54	506	19.92	T10	G	24.5	54.01
CFPG2400S	2	400	0.6	206	8.11	145	5.71	471	18.54	506	19.92	T10	G	28	61.73
CFPG2500S	2	500	0.5	206	8.11	166	6.54	471	18.54	506	19.92	T10	G	32.5	71.65
CFPG2600S	2	600	0.45	206	8.11	145	5.71	646	25.43	681	26.81	T10	G	41.5	91.49
CFPG2800S	2	800	0.4	210	8.27	191	7.52	646	25.43	681	26.81	T10	H	60	132.28
CFPG21000S	2	1000	0.33	233	9.17	210	8.27	646	25.43	681	26.81	T10	H	67	147.71
CFPG21200S	2	1200	0.28	275	10.83	210	8.27	646	25.43	681	26.81	T10	H	87	191.80
CFPG21500S	2	1500	0.22	275	10.83	210	8.27	796	31.34	831	32.72	T10	H	106	233.69
CFPG22000S	2	2000	0.2	399	15.71	210	8.27	772	30.39	807	31.77	T10	H	150	330.69
CFPG22500S	2	2500	0.17	487	19.17	212	8.35	772	30.39	807	31.77	T10	I	187	412.26
CFPG23000S	2	3000	0.13	576	22.68	212	8.35	772	30.39	807	31.77	T10	I	223	491.63

We are updating the datasheet now. Pls contact the concerned person for details.

Key Features :

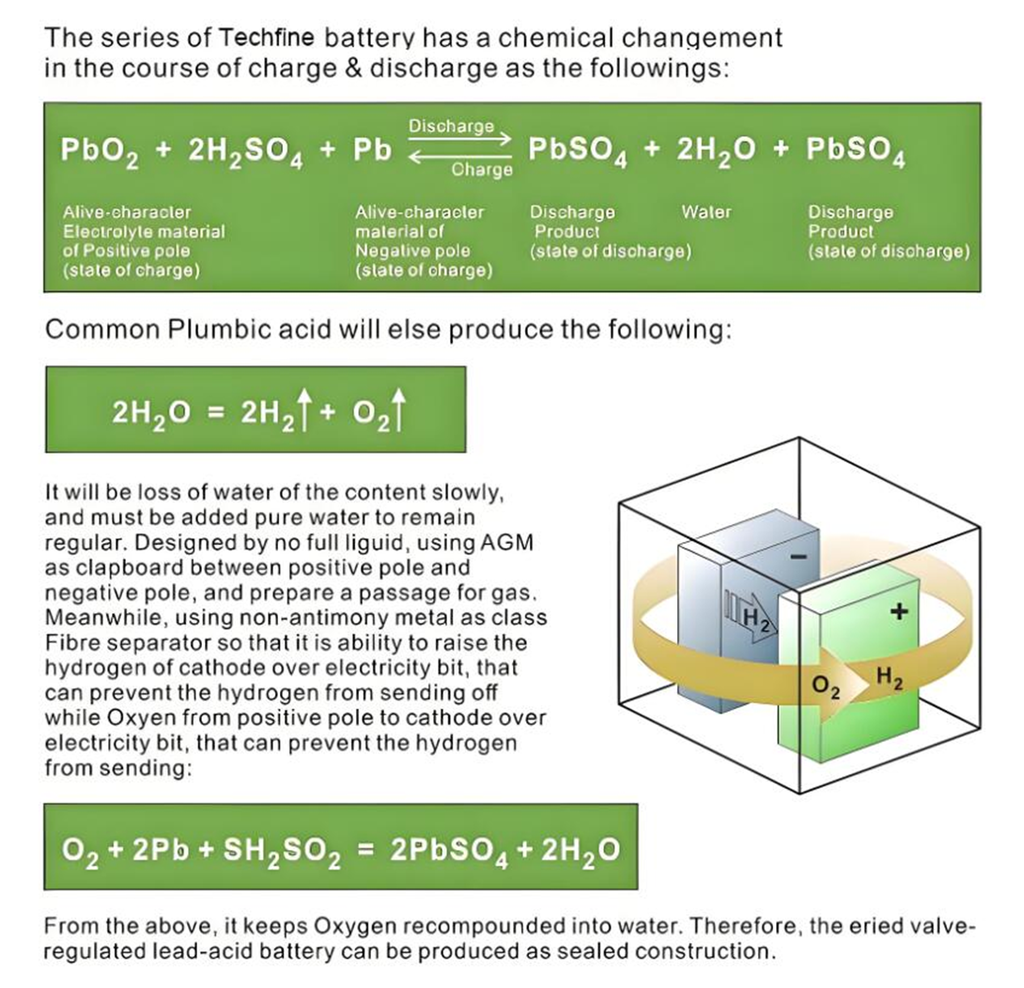

♦Gelled electrolyte made by mixing sulfuric acid with silica fume.
♦The electrolyte is gel like ,immobile and does not leak ,enabling uniform reaction of each part of the plate .
♦High rate discharge performance due to tight assembly technology.
♦Strong heat dissipation and wide operating temperature range.
♦Avoid acid mist being separated out , environment friendliness.
♦Efficient venting system release excessive gas automatically.
