High Temperature Series

High Temperature Battery Series

Voltage :6V &12V

Capacity :FirstPower can produce high temperature battery which capacity from 0.3Ah to 3000Ah

ServiceLife: Battery performance can be expected at the ambient temperatures at -15^oC/5^oF to 70^oC/158^oF

General Features

• Nonspillable •Sealed and Maintenance-free Operation •High Quality and High Reliability •Exceptional Deep Discharge Recovery •Low Self-discharge •Long Service Life •Solid Copper Terminals •Tank-formed Plates •Computer-aided Design and Manufacturing •UL, CE, VdS Approved

Typical Applications

•Fire alarm systems •Solar lighting equipment •Outdoor telecommunication equipment

General Technical Specifications

Model	Nominal Voltage (V)	Capacity (AH)	Internal Resistance (mOhm)	Dimensions（mm/in）								Terminal		Weight ±4%(Kg)
				Length		Width		Height		Total Height		Terminal		Weight ±4%(Kg)
				mm	in	mm	in	mm	in	mm	in	Type	Position	Kg	Lbs
LFP6200T	6	200	2	321	12.64	176	6.93	226	8.9	246/229	9.69/9.02	T5/T11	A	32	70.55
FP1270T	12	7	28	151	5.94	65	2.56	94	3.7	100	3.94	T1	F	2.35	5.18
FP12120T	12	12	19	151	5.94	98	3.86	95	3.74	101	3.98	T2	F	3.6	7.94
FP12180T	12	18	16	181	7.13	77	3.03	167	6.57	167/167	6.57/6.57	T3/T8	D	5.45	12.02
FP12240T	12	24	14	166	6.54	175	6.89	125	4.92	125/125	4.92/4.92	T3/T8	D	7.9	17.42
LFP1233T	12	33	10	195	7.68	130	5.12	155	6.1	180/166	7.09/6.54	T7/T9	C	10.5	23.15
LFP1240T	12	40	8.5	197	7.76	165	6.5	170	6.69	170/170	6.69/6.69	T4/T9	D	13.5	29.76
LFP1265T	12	65	6	350	13.78	167	6.57	179	7.05	186/179	7.32/7.05	T5/T9	C	22	48.50
LFP1260T	12	60	7	260	10.24	168	6.61	211	8.31	233/214	9.17/8.43	T5/T9	C	21	46.30
LFP1270T	12	60	6.5											23	50.71
LFP1280T	12	80	5.5											25	55.12
LFP1290T	12	90	5.5	306	12.05	169	6.65	211	8.31	233/220	9.17/8.66	T5/T9	C	28	61.73
LFP12100T	12	100	4.5	330	12.99	171	6.73	214	8.43	224/220	8.82/8.66	T5/T9	C	32	70.55
LFP12120T	12	120	4	409	16.1	176	6.93	225	8.86	225/225	8.86/8.86	T5/T11	C	37	81.57
LFP12150T	12	150	3.5	485	19.09	172	6.77	240	9.45	242/240	9.53/9.45	T5/T11	C	46	101.41

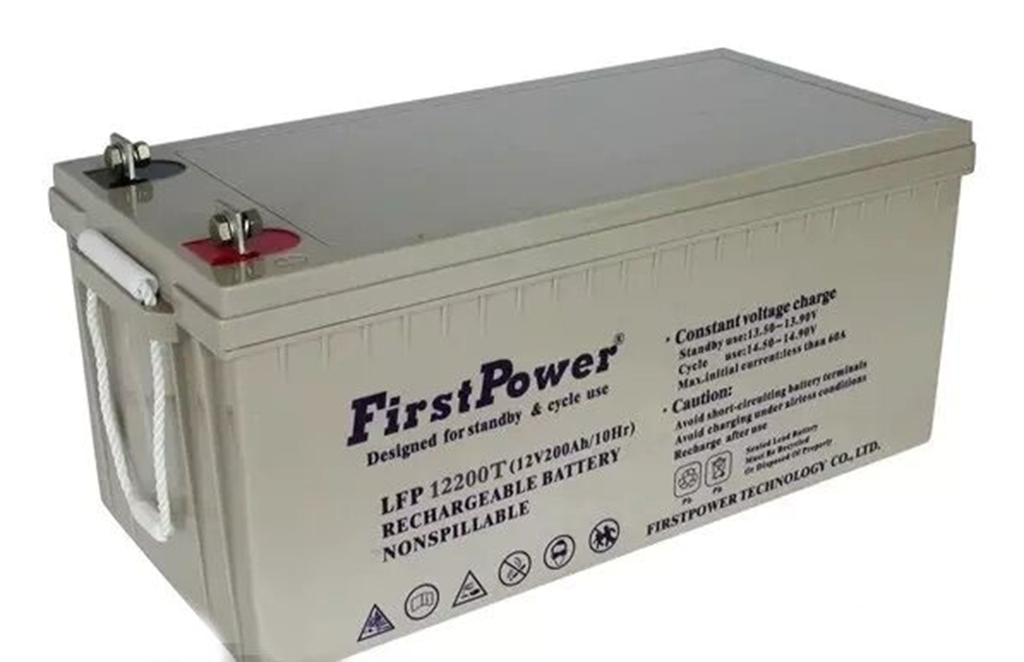

LFP12200T	12	200	3	522	20.55	238	9.37	218	8.58	238/221	9.37/8.7	T5/T11	E	65	143.30
LFP12250T	12	250	2.6	521	20.51	269	10.59	220	8.66	242/223	9.53/8.78	T5/T11	E	78	171.96
LFP12100AFTHT	12	100	6.5	395	15.55	110	4.33	286	11.26	286	11.26	T9/M6	E	31	68.2
LFP12150FTHT	12	150	5	551	21.69	110	4.33	287	11.3	287	11.3	T11/M8	E	48	105.6

We are updating the datasheet now. Pls contact the concerned person for details.

High Temperature Series

VRLA (AGM) Battery
