Lithium-ion Battery

All-in-one Ess

  • Off-grid Wall-mounted All-in-one ESS energy storage system
Wall-mounted All-in-one ESS energy storage system Combining the battery and inverter into one, the battery pack and inverter integrated inside, eliminating the need for a separate external inverter.
  • Wall-mounted All-in-one ESS energy storage system Combining the battery and inverter into one, the battery pack and inverter integrated inside, eliminating the need for a separate external inverter.

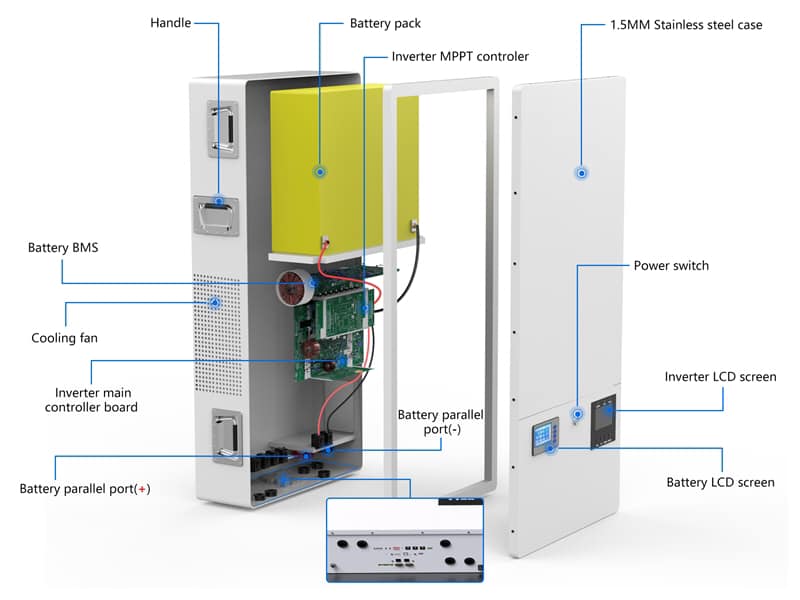

    Integrating energy storage battery and inverter
    Our wall-mounted ESS energy storage system seamlessly integrates the energy storage battery and inverter, eliminating the need for separate components and simplifying installation.
    Supporting PV input and AC mains electricity input
    Empowering Your Energy Independence! With support for both PV input and AC mains electricity input, our cutting-edge system ensures you never run out of power. Enjoy the freedom to generate renewable energy or seamlessly switch to traditional grid power when needed.
    Supporting max 5000W output
    Experience unparalleled power with our high-performance energy storage system supporting a maximum output of 5000W. From running multiple devices simultaneously to charging your electric car, this product has you covered.
    Suitable for residential energy storage and emer gency backup power supply
    Trust our off-grid wall-mounted ESS energy storage system to meet your residential energy needs while providing a reliable emergency backup power supply. Whether powering your home during blackouts or ensuring peace of mind in uncertain times, we’ve got you covered every step of the way.



    Model FP51100-5kW FP51150-8kW FP51200-10kW
    Performance
    Cell Format LFP16S1P LFP16S1P LFP16S2P
    Nominal Copacity 100Ah 150Ah 200Ah
    Battory Usable Enorgy 5.12kWh 7.68kWh 10.24kWh
    Nominal Voltage 51.2V 51.2V 51.2V
    Charge Voltage 57.6V 57.6V 57.6V
    Discharge Cut-off Voltage 44.8V 44.8V 44.8V
    Rate Discharge Current 50A 75A 100A
    Max Discharge Current 100A 150A 200A
    Rate Charge Current 50A 75A 100A
    Max Charge Current 100A 150A 200A
    Inverter
    Rate Output power 5000W 8000W 10000W
    Peak Power 10000W 12000W 15000W
    AC Rate input Voltage 220-230-240V (Single Phase)
    AC input Voltage Range APL DG model: 90Vac-280Vac; UPS City Powor: 170Vac-280Vac
    Rate AC Frequonoy 50/60Hz
    Discharge Cut-off Voitage 44.8V 44.8V 44.8V
    Monitoring Option Wifi
    Peak Efficlency 92%
    Transfer Time 1Oms (typical)
    Parallel capecity 1-6 unit
    Wave Form Pure Sine Wave
    Solar Charger & AC Charger
    Max PV Array Power 5200W 5500+5500W 5500+5500W
    PV input Range   120-450V
    Max Solar Charge Current 18A 22+22A 22+22A
    Max AC Charge Current 40A 63A 63A
    Rate AC Frequenay   50/60Hz
    Max.Voltage of Open Circult 500V 500+500V 500+500V
    Monitoring Option   Wih
    MaxMPPT Charging Current B0A 180A 200A
    Max.DC Charge Current B0A 100A 120A
    Communication
    Display LCD, SOC status indicator, LED Indicator
    Communication CAN/RS485/RS232
    General Specifcation
    Dimension (L*W*H) 520*788*222mm 980*675*245mm 1250*675*245mm
    Weight 65kg 104kg 132kg
    Charge Temperature 0℃ to 55℃
    Oporating Temperature  20℃ to 55℃
    Storago Temperature 0℃ to 40℃
    Ervironmental Humidity < 95% RH
    Protoction Rating P20
    Cycle Life 6000Cycle@25℃, 80%DOD, 0.5C
    Certification
    Cell IEC62619/UL1642
    Battery Pack UN38.3/CE/IEC62619
    Inverter IEC626109/CE



    Product Parameters
