Stacked Series
-
High Voltage Stacked Energy Storage Box 2 to 8 Battery Modules Stackable With 5kWh to 15 kWh Usable
All Technology High Voltage Series Stacked Battery Box contains between 2 to 8 battery modules stacked in parallel and can reach 5 to 15 kWh usable capacity. Easy installations for Backup and Off-Grid application.Thanks to All Technology excellent Iron-Phosphate battery technology, Stacked Battery Box has the superiorities of high reliability, high life-cycle and high-temperature performance, as well as being eco friendly.
-
Product Description
All Technology High Voltage Series Stacked Battery Box contains between 2 to 8 battery modules stacked in parallel and can reach 5 to 15 kWh usable capacity. Easy installations for Backup and Off-Grid application.Thanks to All Technology excellent Iron-Phosphate battery technology, Stacked Battery Box has the superiorities of high reliability, high life-cycle and high-temperature performance, as well as being eco friendly.
Battery Parameters Model HVS200-50 HVS300-50 HVS400-50 HVS500-50 HVS600-50 Capacity 204.8V50Ah 307.2V50Ah 409.6V50Ah 512V50Ah 614.4V50Ah Nominal Voltage 102.4V 5.12kWh 630*450*192mm 60kg Number of Modules 2 3 4 5 6 Nominal Capacity 10.24kwh 15.36kwh 20.48kwh 25.6kwh 30.72kwh Cycle Life ≥6000 Cycles @0.3C/0.3C Serial Number 32S1P(*2) 32S1P(*3) 32S1P(*4) 32S1P(*5) 32S1P(*6) Charge Voltage 204.8V 307.2V 409.6V 512V 614.4V Charge Current 9A（Recommended） Max Charge Current 12.5A Charging Mode Constant Current / Constant Voltage Discharge Cut-off Voltage 185.6V 278.4V 317.2V 464V 556.8V Discharge Current 12.5A(Recommend) Max Discharge Current 25A Peak Discharge Current 50A,30S Battery Size(mm) 630*450*629 630*450*821 630*450*1013 630*450*1205 630*450*1397 Pack Weight 168kg 230kg 292kg 354kg 416kg Protection Class IP55 Charge Temperature 0℃ to 55℃ Discharge Temperature -20℃ to 60℃ Storage Temperature 0℃ to 40℃ Certificate UN38.3/MSDS/CE
BATTERY-BOX （FP-HVB-SES-Scalability）
The All Technology High Voltage Stacked Energy Storage Box is a lithium iron phosphate (LFP) battery for use with an external inverter.Thanks to its control and communication unit (BMU), the Battery-Box is scalable to meet different project requirements. Start with Battery-Box 5.12kWh and extend later to 15.36 kWh using parallel interconnection of up to 8 batteries.
Safety & Reliable
LiFePO4 prismatic battery cell, high safety
Secured by integrated superior vehicle-level BMS
Flexible Applications
Each battery 5.12kWh, scalable to 15.36 kWh Applicable to 1& 3 phase HV hybrid inverters
High Performance
High power emergency-backup when outage IP55 for both indoor and outdoor installation
Easy Installation
Compact and light, quick installation and configuration Prefabricated cables and connectors for plug and play
High Voltage Stacked Battery Box

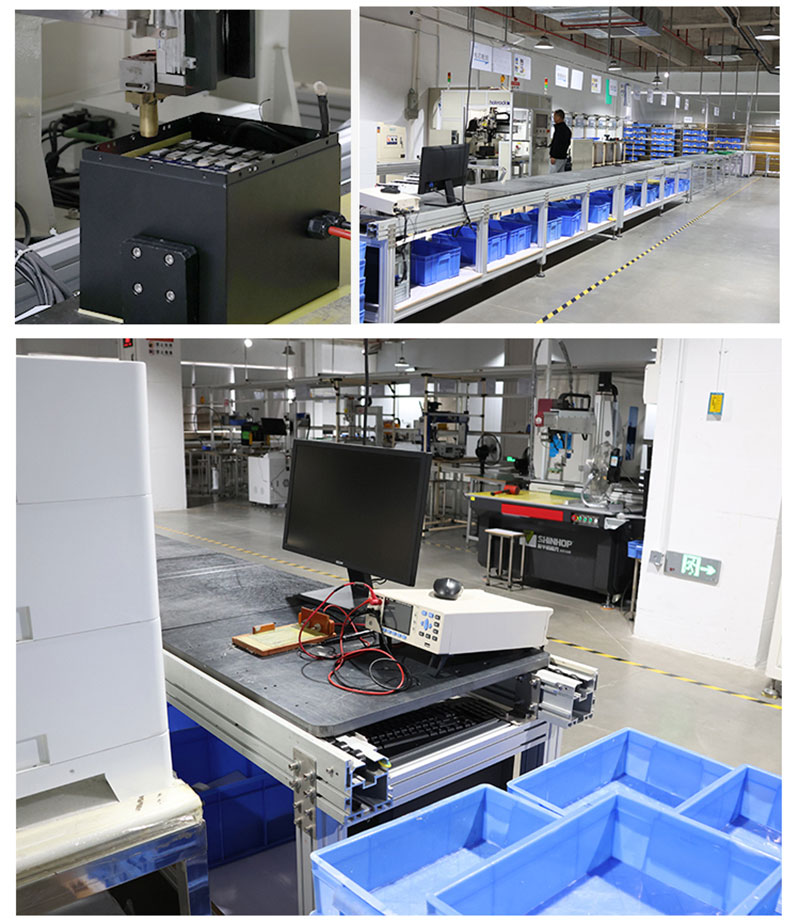

All Technology Co.,Ltd has delivered more
than 1.5G WH batteries serving 100000+ users.
First Power was founded in 1993 and has focused on product
development in the field of batteries for 30 years. We have expertise
and integrated solution services in the power storage application
industry, further catering to the needs of the smart green energy era.
We always believe that energy is the driving force of the future and
First Power is ready to be your reliable partner to provide
OEM/ODM services and completesolutions for smart power energy systems.
FAQ
Q1. What other brand companies provide
Standard Products with fixed size and powers.
What All Technology provides
All Technology not only provides standard products, but also customized products on size, power, and the output you required, is always available.
Q2. How your new products development request is handled by other brand companies
You are asked to check their brochure for any products meeting your requirement. They only work on their standard products. And they want you to accept it as it is.
How All Technology will handle this
We want to first know your initial idea. And you will be invited to participate from designing to sampling, and testing to mass production. All Technology is always standing firmly with you in new product development.
Q3. How do you get the products from other brand companies
There are so many distributors for the above companies. So it will not be possible for you to source from them directly. Then you end up with their products supplied by the distributors at higher costs; Even if you got the chance to cooperate directly, still long lead time or large MOQ orders will be expected from you.
How you get it from All Technology
As the factory, All Technology supplies products directly without any distributors, this way you get the best price to add to your profit; Any amount of order is accepted. All Technology would like to grow with you together, willing to help you to develop your market, and build good relationships with your customers; we keep complete production within the minimum lead time.
Q4. About the product quality you concern most
All Technology has set up an experienced QC team. Materials' guarantee is from the beginning, various testing will be done during and after production. Third-party inspections by your side are welcomed before loading for delivery.
Q5.Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.
Q6: Where can I get the price?
A: We will offer you the best quotation in 24 hours after we get the product specifications such as voltage capacity application etc.
Q7. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q8. Do you test all your goods before delivery?
A: Yes, We have a professional QC team to make sure that the products are in good condition before sending out the goods.
Packaging & Shipping
1pcs per colorful box , 1pcs per carton
* Lead Time: within 7-9 days after payment received
* Shipment Methods: DHL , FedEx , UPS
Lithium-ion Battery
