Wall-Mounted Residential LiFePO4 Lithium Batteries Storage_Wall Mounted Series

Wall Mounted Series

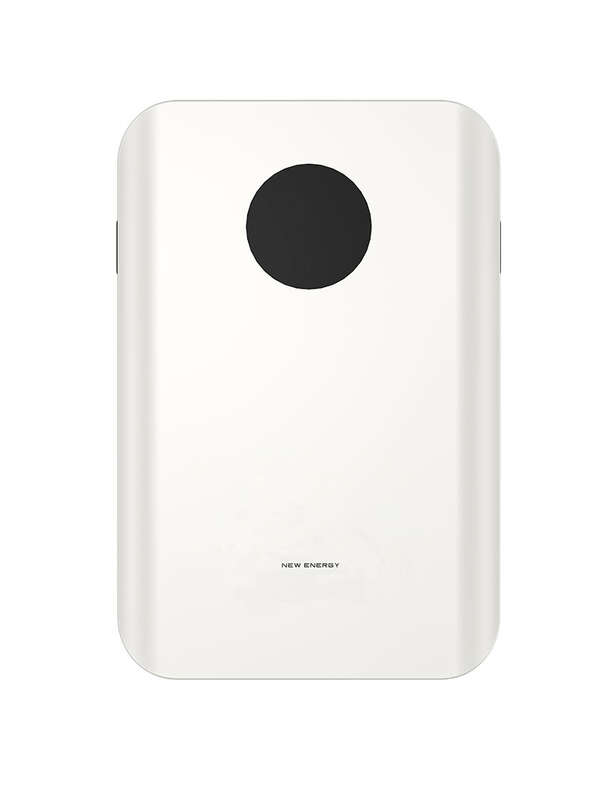

Wall-Mounted Residential LiFePO4 Lithium Batteries Storage

US and Europe Most Popular Best Seller Wall Mounted Solar RV Marine 51.2V 50Ah 100Ah 150Ah 200Ah 300Ah More LiFePO4 Lithium Ion Battery

US and Europe Most Popular Best Seller Wall Mounted Solar RV Marine 51.2V 50Ah 100Ah 150Ah 200Ah 300Ah More LiFePO4 Lithium Ion Battery

Product Description
Applications:
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric bicycle
--LED Backup / Engine Starting Battery,etc

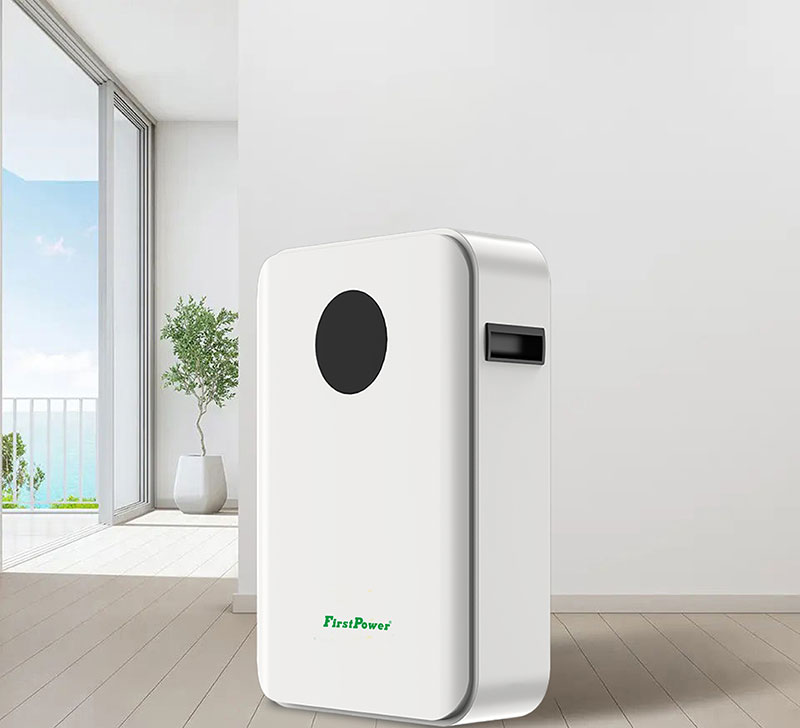

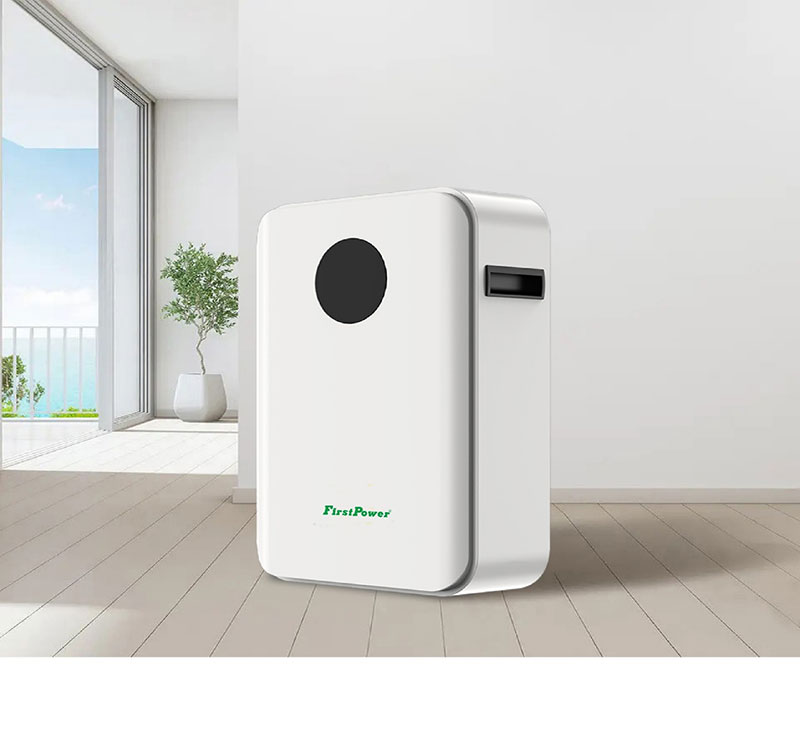

Wall-Mounted Residential Battery Storage

Performance
Cell Chemistry & Format	LFP (LiFePO4),16S1P
Nominal Capacity	FP51100LFP-WM	FP51200LFP-WM
Battery Usable Energy	5.12kWh	10.24kWh
Nominal Voltage	51.2v	51.2V
Nominal Output Current	100A	100A
BMS Protection Current	120A.1s	200A.1s
Charge Voltage	57.6V	57.6V
Charge Current	50A	100A
Peak Charge Current	100A	200A
Charging Mode	Constant Current /Constant Voltage
Discharge Cut- off Voltage	46.4V	46.4V
Discharge Current	50A	100A
Max Discharge Current	100A	200A
Communication
Display	LCD, SOC status indicator, LED indicator
Communication	CAN/RS485/ RS232
General Specifcation
Dimension(LWH)	600410166mm	700450266mm
Weight	50kg	94kg
Charge Temperature	0˚C to 55 ˚C(32 to 131°F)
Cperating Temperature	–22˚C to 55˚C(-4 to 140°F)
Storage Temperature	0˚C to 40˚C(32 to 104°F)
Ervironmental Humidity	95%RH(No condensation)
Protection Rating	lP55
Cycle Life [3]	6000 Cycles @ 80%DOD/ 25˚C/0.5C
Scalability	Max 15 batteries in parallel
Application	ON Grid/ ON Grid +Backup /OFF grid
Compatible Inverer	Refer to compatible inverer list (Compatible with major PCS brands)
Standard Compliance
Safety Cerifcates	Cell:UN38.3/IEC62619/UL1642/JET
Safety Cerifcates	Batter pack UN38.3/IEC62619/IEC61000/ UKCA(More available upon request)

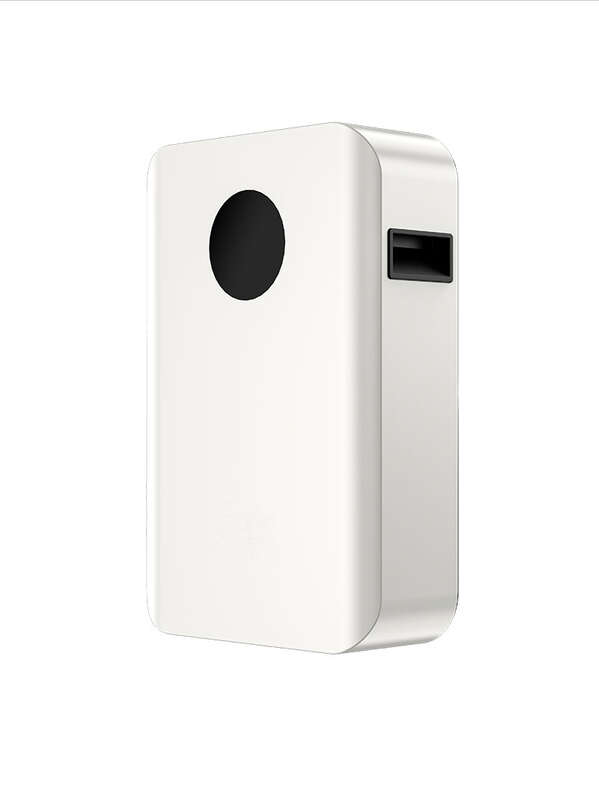

Wall-Mounted Residential LiFePO4 Lithium Batteries Storage
48V-51.2V 50Ah-4500Ah

• BMS are powerful manufacturer(Paceic and Topband BMS) More.
• Bluetooth (BMS) functionality allows full visibility and monitoring from your cellphone or any smart device.
• The LCD screen displays the corresponding voltage and battery level percentage
• Communication： CAN/RS485/ RS232
• Super safe lithium iron phosphate (LiFePO4) chemistry reducing the risk of explosion or combustion due to high impact, over-charging or short circuit situation
• Battery Management System (BMS) controls the parameters of the battery to provide optimum safety by protecting against over-charging and over-discharging
• BMS enhanced design balances the battery cells, optimizing battery performance
• Compatible with 85% inverters on the market. victrom、megarevo、pylontech、Ginlong、voltronic、phocos、Deye、Luxpower、Goodwe、SMA、Growatt、Renac、Foxess、invt、Must、Srne、Kstar.etc
• Higher capacity or voltage capability through parallel or serial connections
• Delivers twice the power of lead acid batteries, even at high discharge rates, while maintaining constant power
• Faster charging and lower self-discharge
• Brand new Grade A+ Cell
• Cell: CATL. BYD. EVE. Gotion. SVOLT.etc
• Up to 10 times more cycles than lead acid batteries
• Cycle Life: 6000 Times more
• Compact and only 40% of the weight of comparable lead acid batteries
• Rugged impact resistant ABS case

What is a Wall-Mounted Battery?
The Wall-Mounted battery is an integrated battery system that can store your solar energy for backup protection when the grid fails. In short, the Wall-Mounted battery is a home energy storage device that can store energy directly from the grid, or it can store electricity generated by renewable energy sources such as wind and solar energy. Households can install a single battery, or couple them together for greater storage capacity. Our solar wall battery uses lithium iron phosphate battery (LiFePO4 or LFP) technology, which has the characteristics of long service life, no maintenance, extremely safe, lightweight, high discharge, and charging efficiency, LiFePO4 battery is not the cheapest battery on the market, but due to the use of Long life and zero maintenance, so over time, it is the best investment you can make.

Feature
1. Under normal conditions, using lithium iron phosphate battery technology,with excellent safety, thousands of cycles,100% DOD
2. Built-in automatic protection function to prevent overcharging, overdischarging,overcurrent and overheating.
3.Maintenance free.
4. Internal battery balance.
5. Light weight: about 40%~50% of the weight of lead-acid batteries.
6. Can be charged using most standard lead acid charge (set).
7. Wide temperature range: -20°C~ 60°C.
8. Support for series application extensions (up to 51.2V) and two parallels.

Model
Basic Parameter
Rated Voltage(V)	51.2
Rated Capacity(Ah)	70
Rated Energy(Wh)	3584
Operation Parameter
Voltage Range(V)	44.8 - 56
Charge Voltage Range(V)	55.2 - 56
Cut-off Voltage(V)	44.8
Recommend Charge Current(A)	30
Max Charge Current(A)	60
Max Discharge Current(A)	60
Physical Parameter
Dimension:LWH(mm)	374138530
Weight(kg)	32
Communication Port	RS485,CAN
Display	LED + LCD
Terminal	Plug-in
Compatible inverter	Growatt, Goodwe, Sol-Ark, Deye Etc
Environment Parameter
Humidity(%)	5-95% RH
Charge Temperature Range(ºC)	0 - 45
Discharge Temperature Range(ºC)	-20 - 60
Storage Temperature Range(ºC)	-20 - 45
Service Life
Cycle Life	>6000 (0.5C@ 25ºC,60% DOD)
Design Life (Year)	15
Certification
Safety & Certification	CE,EMC,TUV(IEC62619),1973
Transportation	UN38.3

Products Features
Wider Temperature Range: -20ºC~60ºC
longer Cycle Life:>6000 Cycles
More Safer:Bulit in BMS system
Safe and Gree:no fire and no explosions.
More Reliable:CE,EMC,TUV(IEC62619), 1973 Certification.
Plug in and play:plug in battries then working.

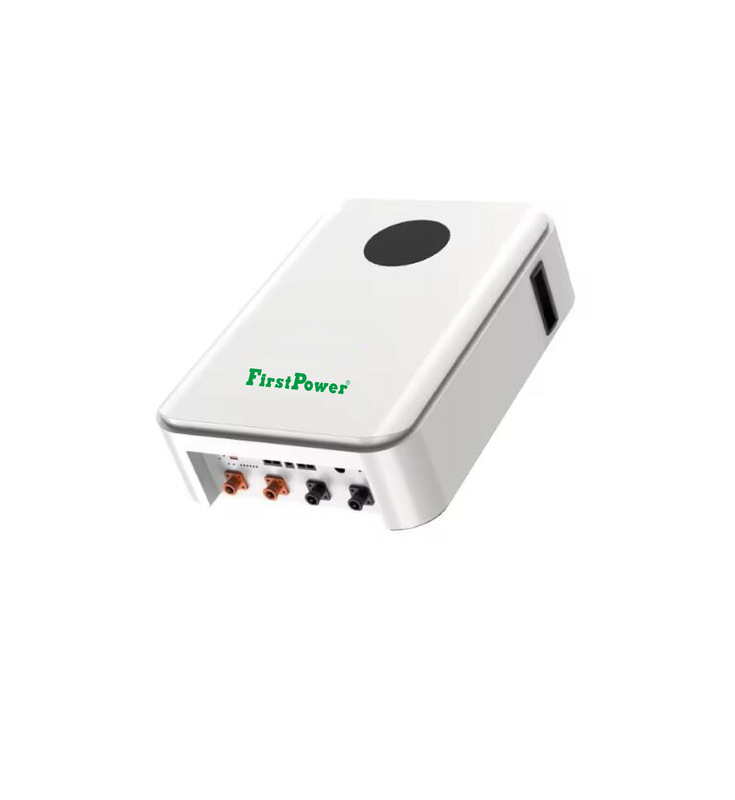

Product Parameters

How does the Solar Wall-Mounted work?
The Solar Wall-Mounted works like most Home Battery Banks. It stores energy from sources such as solar panels or the grid or even a generator and can release the redirected energy for more flexible use in the future when it is needed.
With the increase in residential solar energy storage installations in recent years, Solar Wall-Mounted batteries are often paired with solar panels to store excess energy production. This provides a clean source of energy that can power homes during the day and night, on cloudy days, and dark days in the winter.
Not only does the Solar Wall-Mounted work in off-grid solar systems, but it is equally important in grid-tied solar systems, and we are excited to see more and more homeowners choosing the Solar Wall-Mounted to provide greater flexibility for their solar systems and their home energy.
Product Application

Battery Capacity
The Wall-Mounted has a net capacity of 10.12 kWh (in addition, of course, they are available in 5.12kWh / 10.24 kWh / 20.48kWh versions). This storage capacity is very sufficient for a US home, and if your home consumes more electricity than the average US home, then you can choose to connect multiple Wall-Mounted batteries in parallel to meet your own power needs.The 10kWh battery capacity will be a bit much for European homes, but there are other versions of them available. Especially if one plans to buy an electric vehicle, regardless of the manufacturer, and there is enough space on the roof, the storage unit and solar system should ideally be larger.
All Technology Co.,Ltd has delivered more
than 1.5G WH batteries serving 100000+ users.
First Power was founded in 1993 and has focused on product
development in the field of batteries for 30 years. We have expertise
and integrated solution services in the power storage application
industry, further catering to the needs of the smart green energy era.
We always believe that energy is the driving force of the future and
First Power is ready to be your reliable partner to provide
OEM/ODM services and completesolutions for smart power energy systems.

FAQ
Q1. What other brand companies provide
Standard Products with fixed size and powers.
What All Technology provides
All Technology not only provides standard products, but also customized products on size, power, and the output you required, is always available.

Q2. How your new products development request is handled by other brand companies
You are asked to check their brochure for any products meeting your requirement. They only work on their standard products. And they want you to accept it as it is.
How All Technology will handle this
We want to first know your initial idea. And you will be invited to participate from designing to sampling, and testing to mass production. All Technology is always standing firmly with you in new product development.

Q3. How do you get the products from other brand companies
There are so many distributors for the above companies. So it will not be possible for you to source from them directly. Then you end up with their products supplied by the distributors at higher costs; Even if you got the chance to cooperate directly, still long lead time or large MOQ orders will be expected from you.
How you get it from All Technology
As the factory, All Technology supplies products directly without any distributors, this way you get the best price to add to your profit; Any amount of order is accepted. All Technology would like to grow with you together, willing to help you to develop your market, and build good relationships with your customers; we keep complete production within the minimum lead time.

Q4. About the product quality you concern most
All Technology has set up an experienced QC team. Materials' guarantee is from the beginning, various testing will be done during and after production. Third-party inspections by your side are welcomed before loading for delivery.

Q5.Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.

Q6: Where can I get the price?
A: We will offer you the best quotation in 24 hours after we get the product specifications such as voltage capacity application etc.

Q7. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q8. Do you test all your goods before delivery?
A: Yes, We have a professional QC team to make sure that the products are in good condition before sending out the goods.
