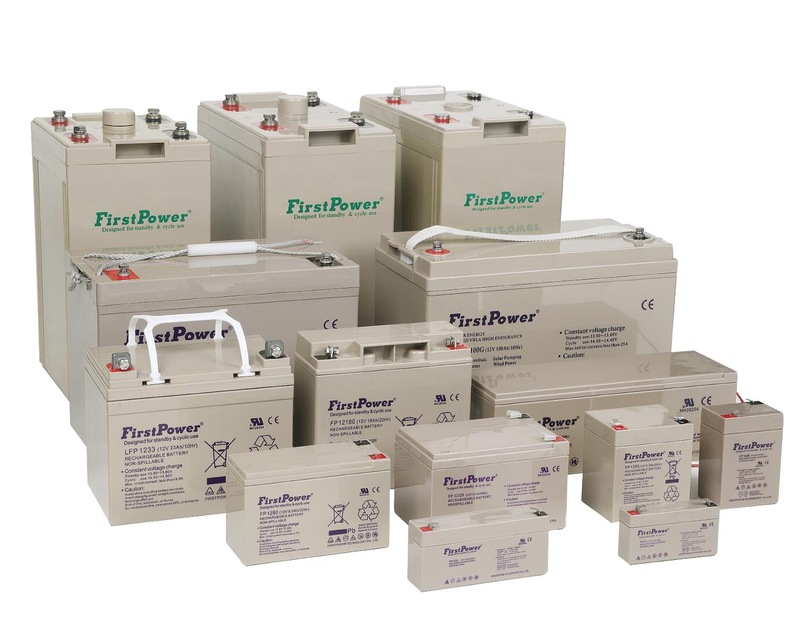

Standard Battery Series
-
Standard Battery Series
Voltage :2V, 4V, 6V, 8V, 12V, 18V, 24V, 36V
Capacity :0.3AH to 3000AH Designed Service Life:10~20 Years (Designed floating service life at 25oC/77oF)
General Features
·Nonspillable·Sealed and Maintenance-free Operation ·High Quality and High Reliability ·Exceptional Deep Discharge Recovery
·Low Self-discharge Long Service Life ·Solid Copper Terminals ·Tank-formed Plates ·Computer-aided Design and Manufacturing ·UL, CE, VdS Approved
Typical Applications
·Telecommunication equipment ·Electronic instruments ·Fire alarm ·Security devices·UPS powe
Capacity :0.3AH to 3000AH Designed Service Life:10~20 Years (Designed floating service life at 25oC/77oF)
General Features
·Nonspillable·Sealed and Maintenance-free Operation ·High Quality and High Reliability ·Exceptional Deep Discharge Recovery
·Low Self-discharge Long Service Life ·Solid Copper Terminals ·Tank-formed Plates ·Computer-aided Design and Manufacturing ·UL, CE, VdS Approved
Typical Applications
·Telecommunication equipment ·Electronic instruments ·Fire alarm ·Security devices·UPS powe
-
Ftandard Battery Series Model Nominal
Voltage (V)Capacity (AH) Internal
ResistancemDimensions（mm） Terminal Weight±4%(Kg) Length Width height Total Height Type Position FP640 6 4 28 70 47 101 107 T1 A 0.7 FP665 6 6.5 17 151 34 94 100 T1/T2 C 1.08 FP690 6 9 12.5 1.4 FP680 6 8 13 98 56 117 119 T1 B 1.35 FP6100 6 10 12 151 50 94 100 T1/T2 C 1.6 FP6120 6 12 11 1.82 FP6200 6 20 9 157 83 125 130 T3 C 3.6 FP1208 12 0.8 260 96 25 62 62 plug O 0.34 FP1212 12 1.2 95 97 43 52 58 T1 E 0.59 FP1214 12 1.4 85 0.61 FP1220C 12 1.6 150 144 24 65 65 Tab 0.6 FP1223C 12 2 130 182 24 62 62 Tab 0.71 FP1223CA 12 2 120 201 24 62 62 Tab 0.72 FP1220A 12 2 60 70 48 98 104 T1 C 0.8 FP1226A 12 2.6 48 0.9 FP1226 12 2.6 45 178 34 60 71 T1 F 0.92 FP1232 12 3.2 50 134 67 61 67 T1 E 1.3 FP1240 12 4 45 90 70 101 107 T1 C 1.4 FP1260 12 6 32 1.82 FP1265 12 6.5 24 151 52 94 99 T2/T1 F 1.92 FP1265A 12 6 28 151 65 94 100 T1/T2 F 2.1 FP1270 12 7 25 2.25 FP1290 12 9 19 2.65 FP12100 12 10 22 151 98 95 101 T2 F 3.5 FP12120 12 12 19 3.6 FP12150A 12 15 19 160 76 159 162 T3 C 4.5 FP12150 12 15 18 181 77 167 167 T3/T8 D 5 FP12200 12 20 15 5.8 FP12240 12 24 12 166 175 125 125 T3/T8 D 8 FP12280 12 28 10 166 175 125 125 T3/T8 D 8.8 FP12280A 12 28 11 165 125 175 182 T6/T8 D 9.5 LFP6100 6 100 3.5 194 170 205 210 T9 A 16.5 LFP6150 6 150 3.3 260 180 245 250 T11 B 23.5 LFP6180 6 180 3.2 307 169 220 225 T11 B 27 LFP6200A 6 200 3.1 30.5 LFP6190 6 190 3.2 243 187 253 276 T11 B 28.5 LFP6220 6 220 3 33 LFP6200 6 200 3.1 321 176 226 246/229 T5/T11 A 31 LFP1233 12 33 10 195 130 155 180/166 T7/T9 C 10.2 LFP1238 12 38 9.7 197 165 170 170/170 T4/T9 D 12.5 LFP1240 12 40 9.5 13.3 LFP1245 12 45 8 14 LFP1250 12 50 6.2 229 138 208 230/211 T5/T9 C 16.5 LFP1255 12 55 5.8 17.5 LFP1260 12 60 5.7 260 168 211 233/214 T5/T9 C 20 LFP1285 12 85 5.3 25 LFP1265A 12 65 6 350 166 174 174 --- D 21.5 LFP1265 12 65 6 350 167 179 186/179 T5/T9 C 21.2 LFP1280 12 80 5.4 24 LFP1290 12 90 5.5 306 169 211 233/214 T5/T9 C 27 LFP1290A 12 90 5 330 171 214 224/220 T5/T9 C 27 LFP12100 12 100 4.5 30.5 LFP12100A 12 100 4.5 406 173 208 238 --- C 31 LFP12110 12 110 4 281 267 207 210 T11 B 34 LFP12120 12 120 4 409 176 225 225/225 T5/T11 C 35 LFP12134 12 134 3.8 342 172 280 285 T11 C 42.5 LFP12145 12 145 4.5 428.5 177 258 258 M6 bolt 47.5 LFP12150 12 150 3.5 485 172 240 242/240 T5/T11 C 44.5 LFP12150S 12 150 3.8 494 206 209 235/235 T20/T11 E 50.5 LFP12180 12 180 3.5 54 LFP12200 12 200 3 522 238 218 238/221 T5/T11 E 61 LFP12225 12 225 2.8 64 LFP12200S 12 200 3 499 260 218 241 T12 E 61.5 LFP12220S 12 220 2.8 64.5 LFP12250 12 250 2.6 521 269 220 242/223 T5/T11 E 73.5
VRLA (AGM) Battery
