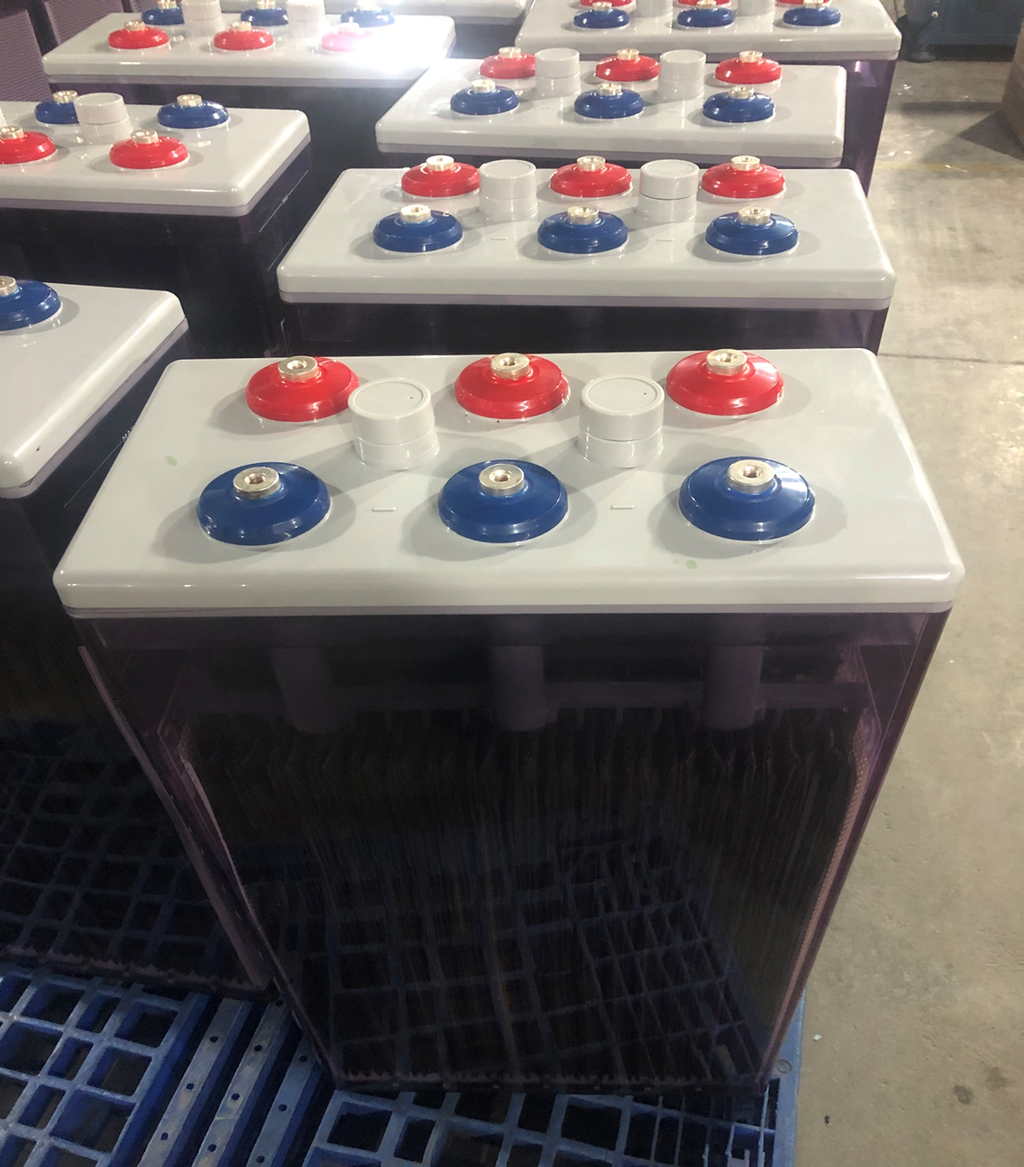

CFPS (OPZS) Series
-
CFPS [OPzS] Battery Series
Voltage :2V, 6V, 12V
Capacity :60AH~3000AH
ServiceLife: Designed floating service life 20 years at 20oC/68oF，Designed cycle life more than 2000 cycles at 80% DOD at 20oC/68oF
Battery Summary
The FirstPower CFPS(2V) and LFPS(6V/12V) series stationary batteries (OPzS battery) are the newly products which were developed at the end of 2005.
The performances meet the standard DIN40736 and IEC60896-11
Typical Applications
•Telecommunication equipment •Electronic instruments •Fire alarm and security devices •UPS power supply •Solar power system •Wind power system
Capacity :60AH~3000AH
ServiceLife: Designed floating service life 20 years at 20oC/68oF，Designed cycle life more than 2000 cycles at 80% DOD at 20oC/68oF
Battery Summary
The FirstPower CFPS(2V) and LFPS(6V/12V) series stationary batteries (OPzS battery) are the newly products which were developed at the end of 2005.
The performances meet the standard DIN40736 and IEC60896-11
Typical Applications
•Telecommunication equipment •Electronic instruments •Fire alarm and security devices •UPS power supply •Solar power system •Wind power system
-
Characteristics

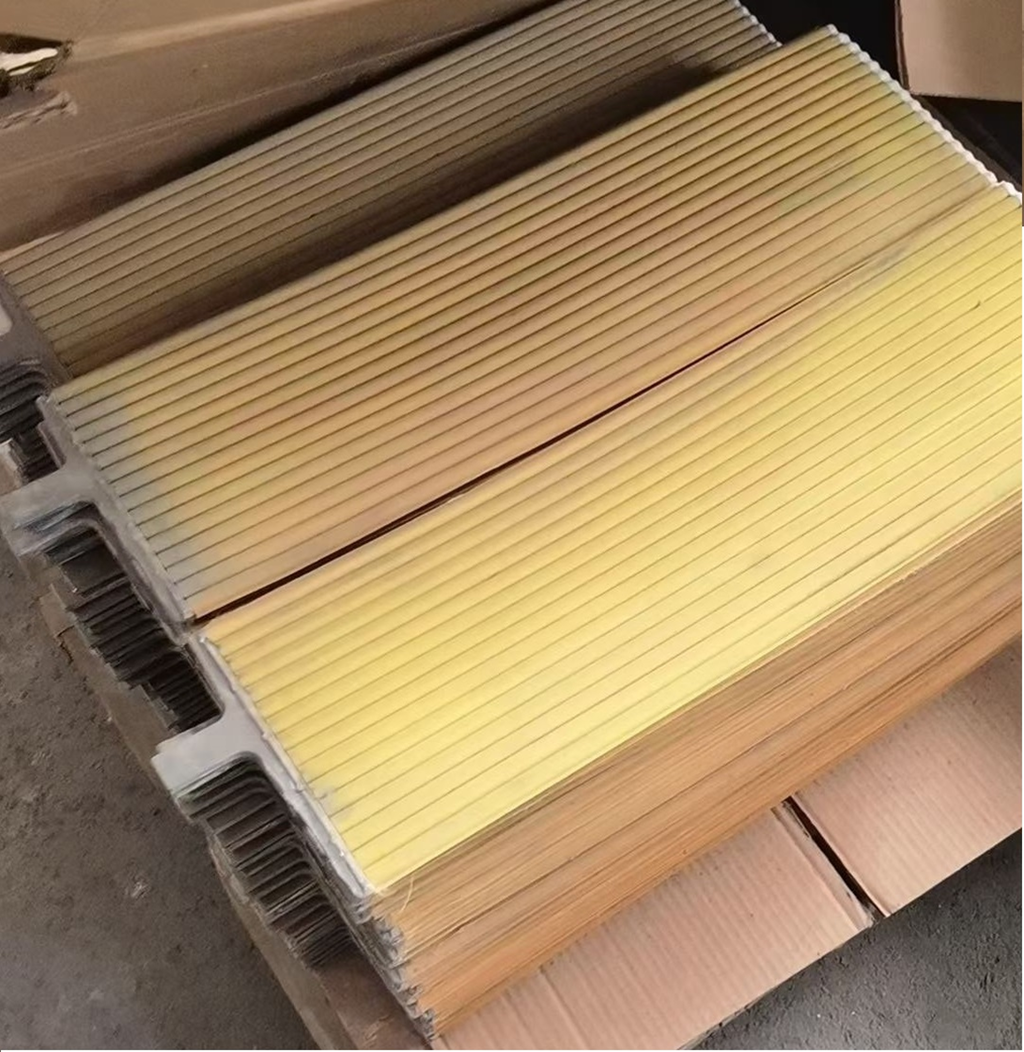

• Positive plate: It is a tubular plate that can prevent the active material from falling off. The grid of positive plate is Pb-Sb multi-alloy
• Separator: With the combined application of porous rubber and porous PVC, the separator has a high porosity and good corrosion-resistance
• Acid-proof bolt: It is of a special shape of funnel having the function of filtering acid smog and retarding flame. It can measure the density and temperature of electrolyte.
• The design life is more than 20 years
• Ensuring sufficient electrolyte for battery discharge
Technical parametersEnvironment temperature -20℃～50℃ Environmental temperature for best utilization 25℃ +/- 5℃ Float charging voltage 2.25~2.30V/unit Cycle charging voltage 2.40~2.45V/unit Equalization voltage 2.45V/unit Temperature adjustment coefficient -3mV/℃/unit Max charging current 0.20C10A Design service life 20 years(20℃)
General Technical Specifications
We are updating the datasheet now. Pls contact the concerned person for details.Model Rated
Voltage
(V)Rated
Capacity
(AH)Dimensions（mm/in） Weight ±4%(Kg) Number
of post of
the same
polarityLength Width Height Total Height Dry wet Acid weight(d=1.24kg/L) mm in mm in mm in mm in Kg Lbs Kg Lbs Kg Lbs CFPS2100 2 100 103 4.06 206 8.11 354 13.94 409 16.1 8.5 18.7 13.5 29.8 5 11 1 CFPS2150 2 150 103 4.06 206 8.11 354 13.94 409 16.1 11 24.3 15 33.1 4.5 9.9 1 CFPS2200 2 200 103 4.06 206 8.11 354 13.94 409 16.1 13.5 29.8 17.5 38.6 4 8.8 1 CFPS2250 2 250 124 4.88 206 8.11 354 13.94 409 16.1 16 35.3 21 46.3 5 11 1 CFPS2300 2 300 145 5.71 206 8.11 354 13.94 409 16.1 18.5 40.8 24.5 54 6 13.2 1 CFPS2350 2 350 124 4.88 206 8.11 470 18.5 525 20.67 20 44.1 27 59.5 7 15.4 1 CFPS2420 2 420 145 5.71 206 8.11 470 18.5 525 20.67 24.5 54 33 72.8 8.5 18.7 1 CFPS2500 2 500 166 6.54 206 8.11 470 18.5 525 20.67 26 57.3 36 79.4 10 22 1 CFPS2600 2 600 145 5.71 206 8.11 645 25.39 700 27.56 31 68.3 43 94.8 12 26.5 1 CFPS2770 2 770 253 9.96 210 8.27 472 18.58 527 20.75 42.5 93.7 57.5 126.8 15 33.1 1 CFPS2800 2 800 191 7.52 210 8.27 645 25.39 700 27.56 42 92.6 58 127.9 16 35.3 2 CFPS21000 2 1000 233 9.17 210 8.27 645 25.39 700 27.56 52 114.6 72 158.7 20 44.1 2 CFPS21200 2 1200 275 10.83 210 8.27 645 25.39 700 27.56 62 136.7 86 189.6 24 52.9 2 CFPS21500 2 1500 275 10.83 210 8.27 795 31.3 850 33.46 75 165.3 105 231.5 30 66.1 2 CFPS22000 2 2000 399 15.71 210 8.27 771 30.35 826 32.52 108 238.1 150 330.7 42 92.6 3 CFPS22500 2 2500 487 19.17 212 8.35 771 30.35 826 32.52 130 286.6 183 403.4 52 114.6 4 CFPS23000 2 3000 576 22.68 212 8.35 771 30.35 826 32.52 157 346.1 220 485 63 138.9 4 LFPS1220 12 20 197 7.76 165 6.5 155 6.1 169 6.65 8.5 18.7 13 28.7 4.5 9.9 1 LFPS1230 12 30 260 10.24 170 6.69 201 7.91 215 8.46 11 24.3 15 33.1 5.5 12.1 LFPS1240 12 40 13.5 29.8 20 44.1 6.5 14.3 LFPS1260 12 60 17.5 38.6 24.5 54 7 15.4 LFPS1280 12 80 330 12.99 171 6.73 217 8.54 235 9.25 21 46.3 28 61.7 7 15.4 LFPS12100 12 100 409 16.1 176 6.93 205 8.07 225 8.86 27 59.5 34.5 76.1 7.5 16.5 1 LFPS12120 12 120 485 19.09 172 6.77 220 8.66 240 9.45 32.5 71.7 44.5 98.1 12 26.5 LFPS12140 12 140 532 20.94 207 8.15 204 8.03 224 8.82 38 83.8 53 116.8 15 33.1 LFPS12160 12 160 522 20.55 238 9.37 203 7.99 221 8.7 42.8 94.4 60.5 133.4 17.7 39 LFPS12180 12 180 522 20.55 238 9.37 203 7.99 221 8.7 47.6 104.9 65 143.3 19.9 43.9 LFPS12200 12 200 521 20.51 269 10.59 203 7.99 223 8.78 50 110.2 73 160.9 23 50.7 LFPS680 6 80 194 7.64 170 6.69 205 8.07 210 8.27 12.2 26.9 16.5 36.4 4.3 9.5 1 LFPS6100 6 100 260 10.24 180 7.09 235 9.25 250 9.84 13.6 30 19 41.9 5.4 11.9 LFPS6120 6 120 260 10.24 180 7.09 235 9.25 250 9.84 15.5 34.2 22 48.5 6.5 14.3 LFPS6140 6 140 307 12.09 169 6.65 208 8.19 225 8.86 18.7 41.2 27.5 60.6 8.3 18.3 1 LFPS6160 6 160 307 12.09 169 6.65 208 8.19 225 8.86 21.2 46.7 30 66.1 8.8 19.4 LFPS6180 6 180 295 11.61 178 7.01 330 12.99 348 13.7 25.5 56.2 36.5 80.5 9 19.8 LFPS6200 6 200 295 11.61 178 7.01 330 12.99 348 13.7 27 59.5 36 79.4 9 19.8 LFPS6250 6 250 295 11.61 178 7.01 390 15.35 408 16.06 29 63.9 40.5 89.3 11.5 25.4 LFPS6300 6 300 295 11.61 178 7.01 390 15.35 408 16.06 42.5 93.7 55 121.3 12.5 27.6
Key Features:
*Gelled electrolyte made by mixing sulfuric acid with silica fume.*High rate discharge performance due to tight assembly
technology
*Strong heat dissipation and wide operating temperature range
*Avoid acid mist being separated out , environment friendliness
*Efficient venting system release excessive gas automatically
Applications:
*EPS and UPS battery backup
*Solar and wind energy storage system
*Telecommunication Equipment
*Power plant and transmission system
*Signal system , emergency lighting system , security system
