Home movable floor-standing energy storage battery system_Floor Remov Able Series

Floor Remov Able Series

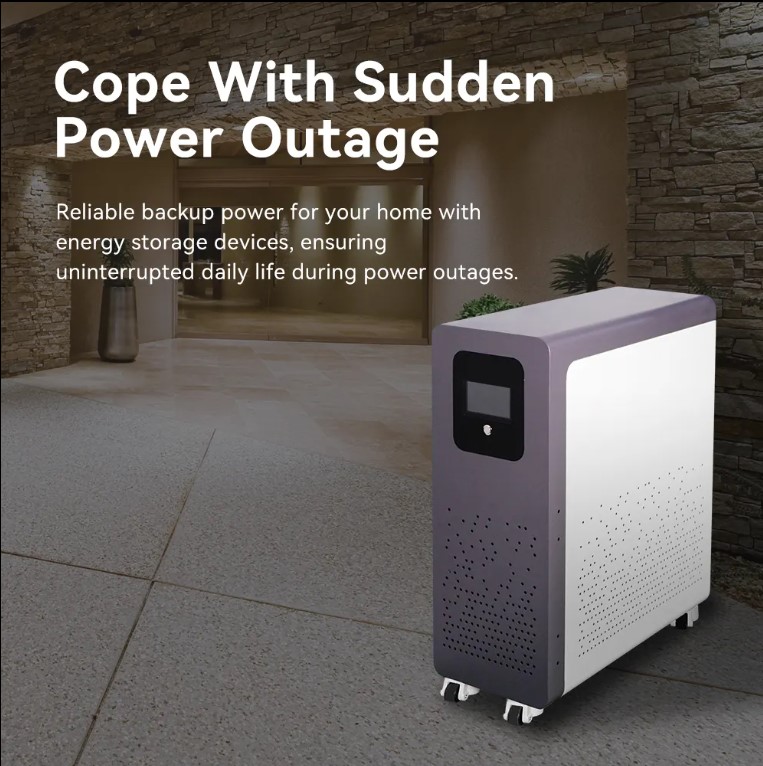

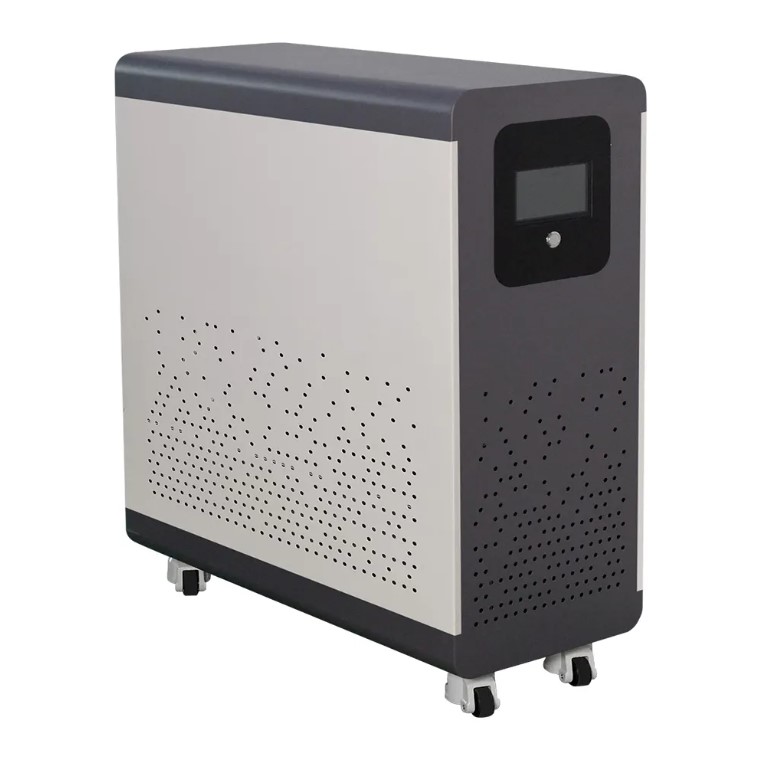

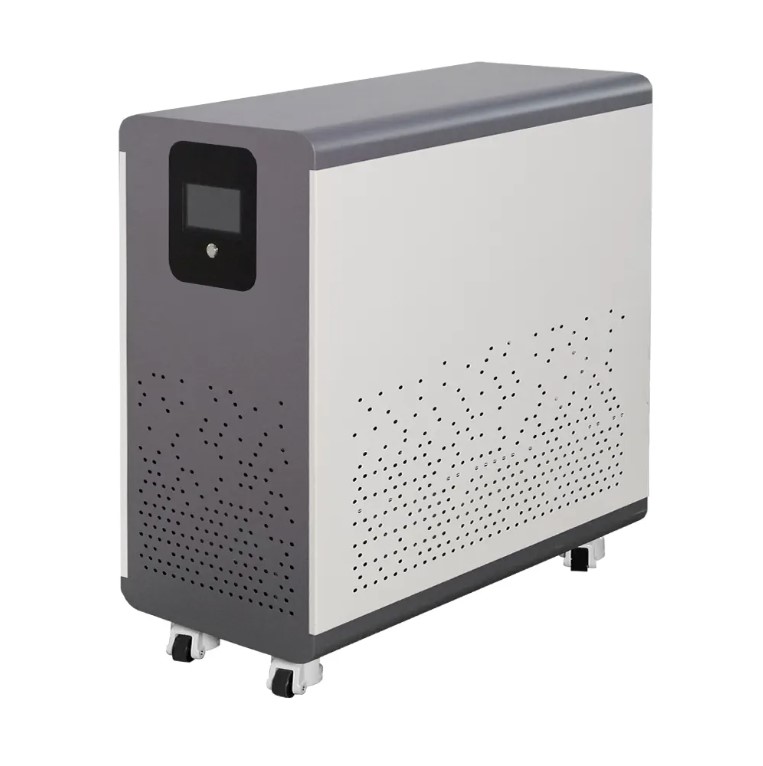

Home movable floor-standing energy storage battery system

Home floor-standing energy is an efficient and versatile energy storage system with a floor-standing design, perfect for residential and industrial use. This dynamic solution rests firmly on the ground, providing a reliable and adaptable power source for your home. Whether you require a smaller capacity option like our 14.4KWh 48V 300Ah or a larger capacity like our 19.2KWh 48V 400Ah, this system is ideal for all your energy storage needs.

Product Description
Applications:
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric bicycle
--LED Backup / Engine Starting Battery,etc

Rack-Mounted Residential Battery Storage

Model	FP51300LFP-FS	FP51400LFP-FS
Performance
Cell Chemistry & Format	LFP(LiFePO4),16S3P	LFP(LiFePO4),16S4P
Nominal Capacity	300Ah	400Ah
Battery Usable Energy	15.36kWh	20.48kWh
Nominal Voltage	51.2V	51.2V
Nominal Output Current	100A	100A
BMS Protection Current	120A,1S	120A,1S
Charge Voltage	57.6V	57.6V
Charge Current	30A	30A
Max Charge Current	50A	50A
Peak Charge Current	100A	100A
Charging Mode	Constant Current / Constant Voltage
Discharge Cut- off Voltage	46.4V	46.4V
Discharge Current	50A	50A
Max Discharge Current	100A	100A
Communication
Display	LCD，SOC status indicator, LEDindicator
Weight	CAN/RS485/RS232
General Specifcation
Dimension(LWH)	5155151100mm
Weight	140kg	170kg
Charge Temperature	0˚C to 55℃(32 to 131°F)
Operating Temperature	–22˚C to 55˚C(-4 to 140°F)
Storage Temperature	0˚C to 40˚C(32 to 104°F)
Environmental Humidity	95%RH(No condensation)
Protection Rating	IP55
Cycle Life [3]	6000 Cycles @ 80%DOD/ 25℃/0.5C，60% EOL
Scalability	Max 15 batteries in parallel
Application	ON Grid / ON Grid +Backup / OFF grid
Compatible Inverer	Refer to compatible inverer list (Compatible with major PCS brands)
Standard Compliance
Safety Cerifcates	Cell: UN38.3/IEC62619/UL 1642/JET
Safety Cerifcates	Batter pack UN38.3/IEC62619/IEC61000/ UKCA(More available upon request

Product Features:
Home Floor Standing Energy Battery Storage System
1.Use safer lithium iron phosphate batteries(LiFePO4)
Our home movable floor-standing energy storage battery system harnesses the power of lithium iron phosphate (LiFePO4) batteries, ensuring maximum safety and reliability. Say goodbye to worries about overheating or explosion risks commonly associated with other battery types. Our cutting-edge technology lets you enjoy an uninterrupted power supply without compromising your family’s safety.
2.Integrated Intelligent Battery Management System (BMS)
Experience a new efficiency level with our integrated Intelligent Battery Management System (BMS). This advanced technology monitors and protects your battery and optimizes energy usage according to your specific needs. By intelligently managing the charging and discharging processes, our system maximizes performance, extends battery life, and saves you money on electricity bills.
3.With LCD display to display detailed battery parameters
Stay in control of your energy usage with our home movable floor-standing energy storage battery system’s LCD feature. The clear and detailed battery parameter display allows you to monitor your batteries’ status in real time easily. From voltage levels to remaining capacity, this intuitive interface empowers you to make informed decisions regarding your energy consumption. It ensures you always have enough backup power when needed.
4.Compatible with most inverters on the market
Works Effortlessly with Any Inverter on the Market! No need to worry about compatibility issues

Products Features
Electrical Characteristics
Nominal Voltage (V) :48V
Nominal Capacity（Ah）: 300Ah@0.3C
Nominal Capacity (KWh) :14.4KWh
Cycle Life ≥6000 Cycles @0.3C/0.3C
Serial Number : 16S2P
Communication Port : RS485/CAN

Charging Parameters
Charge Voltage（V）: 57.6V
Charge Current（A）: 30A（Recommend ）
Max Charge Current（A） 50A
Peak Charge Current（A） 100A
Charging Mode Constant Current / Constant Voltage
Discharge Parameters
Discharge Cut-off Voltage : 43.5V
Discharge Current: 50A （Recommended）
Max Discharge Current :100A
Operating Environment
Charge Temperature : 0℃ to 55℃
Discharge Temperature : -20℃ to 60℃
Storage Temperature : 0℃ to 40℃
Other Parameters
Shell Material : Sheet metal chassis
Battery Size : 515（L）515（W）1100（H）mm
Pack Weight : 150Kg
Protection Class : IP55
Installation Method : Floor standing

Product Parameters

OEM/ODM services and completesolutions for smart power energy systems.

FAQ
Q1. What other brand companies provide
Standard Products with fixed size and powers.
What All Technology provides
All Technology not only provides standard products, but also customized products on size, power, and the output you required, is always available.

Q2. How your new products development request is handled by other brand companies
You are asked to check their brochure for any products meeting your requirement. They only work on their standard products. And they want you to accept it as it is.
How All Technology will handle this
We want to first know your initial idea. And you will be invited to participate from designing to sampling, and testing to mass production. All Technology is always standing firmly with you in new product development.

Q3. How do you get the products from other brand companies
There are so many distributors for the above companies. So it will not be possible for you to source from them directly. Then you end up with their products supplied by the distributors at higher costs; Even if you got the chance to cooperate directly, still long lead time or large MOQ orders will be expected from you.
How you get it from All Technology
As the factory, All Technology supplies products directly without any distributors, this way you get the best price to add to your profit; Any amount of order is accepted. All Technology would like to grow with you together, willing to help you to develop your market, and build good relationships with your customers; we keep complete production within the minimum lead time.

Q4. About the product quality you concern most
All Technology has set up an experienced QC team. Materials' guarantee is from the beginning, various testing will be done during and after production. Third-party inspections by your side are welcomed before loading for delivery.

Q5.Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.

Q6: Where can I get the price?
A: We will offer you the best quotation in 24 hours after we get the product specifications such as voltage capacity application etc.

Q7. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q8. Do you test all your goods before delivery?
A: Yes, We have a professional QC team to make sure that the products are in good condition before sending out the goods.
* Shipment Methods: DHL , FedEx , UPS
