Lithium-ion Battery

Rack Mounted Series

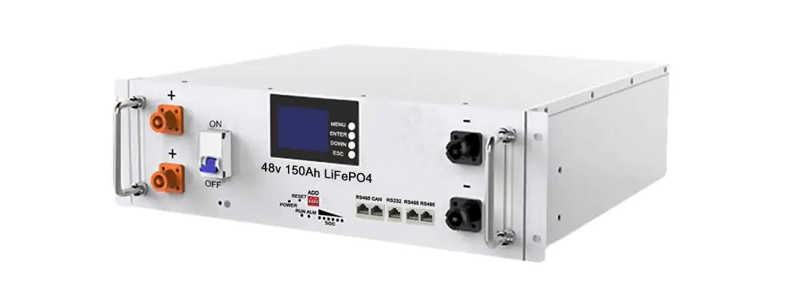

  • Rack Mounted 48V 100Ah 200Ah 300Ah LiFePO4 Lithium Ion Battery
US and Europe Most Popular Best Seller Rack Mounted Solar RV Marine 51.2V 50Ah 100Ah 150Ah 200Ah 300Ah More LiFePO4 Lithium Ion Battery
  • US and Europe Most Popular Best Seller Rack Mounted Solar RV Marine 51.2V 50Ah 100Ah 150Ah 200Ah 300Ah More LiFePO4 Lithium Ion Battery

    1.Energy Storage
    --Solar-Wind Power System / City Grid (On/Off) / Community and Family
    2.Back-up System and UPS
    --Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
    3.Other Applications
    --Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
    --RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric bicycle
    --LED Backup / Engine Starting Battery,etc

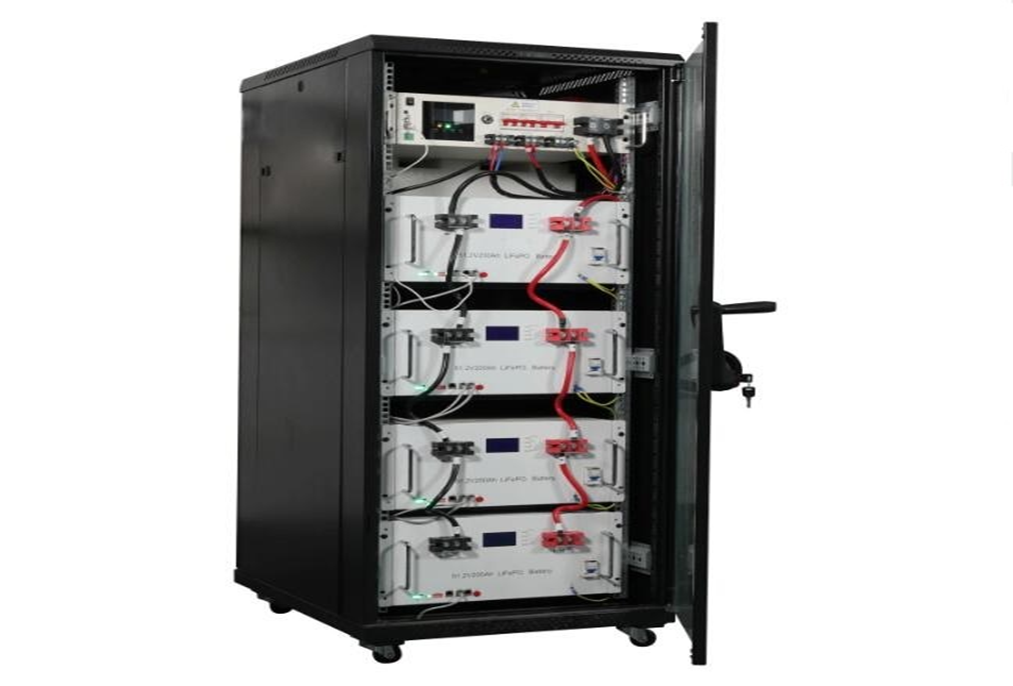

    Rack-Mounted Residential Battery Storage
    Product Type FP51100LFP-RM FP51150LFP-RM FP51200LFP-RM
    Cell material lithium iron phosphate lithium iron phosphate lithium iron phosphate
    CombinationMode 16S 16S 16S
    Rated Voltage 51.2v 51.2v 51.2v
    Rated Capacity 100Ah ( @25) 150Ah ( @25) 200Ah ( @25)
    Rated Energy 5120Wh 7680Wh 10240Wh
    Dimensions 482x430x175(±2)mm
    (With Handles)
    (With Handles)
    (With Handles)
    Weight 47Kg 68Kg 86Kg
    RS485RS232 CAN RS485RS232CAN RS485RS232CAN
    ProtectionLevel lP20 lP20 lP20
    Cycle Life 6000
    (times @ 25
    (times @ 25
    (times @ 25
    Material of Box Sheet Metal Sheet Metal Sheet Metal
    Voltage Range 40-58.4V 40-58.4V 40-58.4V
    Maximum Continuous
    Discharge Current
    100A 100A 100A
    Maximum Continuous
    Charge Current
    50A 50A 50A
    End of Charge Voltage 58.4V 58.4V 58.4V
    End of Discharge Voltage 40v 40v 40v
    lnput Protection 125A/1P MCB(Optional) 125A/1P MCB(Optional) 125A/1P MCB(Optional)
    Charging Temperature 0˚C to 55˚C 0˚C to 55˚C 0˚C to 55˚C
    DischargingTemperature –22˚C to 55˚C –22˚C to 55˚C –22˚C to 55˚C
    StorageTemperature –22˚C to 55˚C –22˚C to 55˚C –22˚C to 55˚C
    Standards CB IEC62368-1 (IEC 62619) IEC62368-1 (IEC 62619) IEC62368-1 (IEC 62619)
    EMC IEC/EN 61000-6-1/2/3/4,
    ETSIEN 300 386
    IEC/EN 61000-6-1/2/3/4,
    ETSIEN 300 386
    IEC/EN 61000-6-1/2/3/4,
    ETSIEN 300 386
    CE EMC Directive 2014/30/EU
    RoHS Directive 2011/65/EC
    WEEE directive 2012/19/EU
    EMC Directive 2014/30/EU
    RoHS Directive 2011/65/EC
    WEEE directive 2012/19/EU
    EMC Directive 2014/30/EU
    RoHS Directive 2011/65/EC
    WEEE directive 2012/19/EU
    Battery Directive Battery Directive 2013/56/EU Battery Directive 2013/56/EU Battery Directive 2013/56/EU
    Transport UN38.3 UN38.3 UN38.3

    1. Under normal conditions, using lithium iron phosphate battery technology,with excellent safety, thousands of cycles,100% DOD
    2. Built-in automatic protection function to prevent overcharging, overdischarging,overcurrent and overheating.
    3.Maintenance free.
    4. Internal battery balance.
    5. Light weight: about 40%~50% of the weight of lead-acid batteries.
    6. Can be charged using most standard lead acid charge (set).
    7. Wide temperature range: -20°C~ 60°C.
    8. Support for series application extensions (up to 51.2V) and two parallels.

    Products Features
    Wider Temperature Range: -20ºC~60ºC
    longer Cycle Life:>6000 Cycles
    More Safer:Bulit in BMS system
    Safe and Gree:no fire and no explosions.
    More Reliable:CE,EMC,TUV(IEC62619), 1973 Certification.
    Plug in and play:plug in battries then working.

    Product Parameters

    All Technology Co.,Ltd has delivered more
    than 1.5G WH batteries serving 100000+ users.
    First Power was founded in 1993 and has focused on product
    development in the field of batteries for 30 years. We have expertise
    and integrated solution services in the power storage application
    industry, further catering to the needs of the smart green energy era.
    We always believe that energy is the driving force of the future and
    First Power is ready to be your reliable partner to provide
    OEM/ODM services and completesolutions for smart power energy systems.

    Q1. What other brand companies provide
    Standard Products with fixed size and powers.
          What All Technology provides
    All Technology not only provides standard products, but also customized products on size, power, and the output you required, is always available.

    Q2. How your new products development request is handled by other brand companies
    You are asked to check their brochure for any products meeting your requirement. They only work on their standard products. And they want you to accept it as it is.
         How All Technology will handle this
    We want to first know your initial idea. And you will be invited to participate from designing to sampling, and testing to mass production. All Technology is always standing firmly with you in new product development.

    Q3. How do you get the products from other brand companies
    There are so many distributors for the above companies. So it will not be possible for you to source from them directly. Then you end up with their products supplied by the distributors at higher costs; Even if you got the chance to cooperate directly, still long lead time or large MOQ orders will be expected from you.
        How you get it from All Technology
    As the factory, All Technology supplies products directly without any distributors,  this way you get the best price to add to your profit; Any amount of order is accepted. All Technology would like to grow with you together, willing to help you to develop your market,  and build good relationships with your customers; we keep complete production within the minimum lead time.

    Q4. About the product quality you concern most
    All Technology has set up an experienced QC team. Materials' guarantee is from the beginning, various testing will be done during and after production. Third-party inspections by your side are welcomed before loading for delivery.
    Q5.Can I have a sample order?
    A: Yes, we welcome sample orders to test and check quality.
    Q6: Where can I get the price?
    A: We will offer you the best quotation in 24 hours after we get the product specifications such as voltage capacity application etc.
    Q7. What are your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
    Q8. Do you test all your goods before delivery?
    A: Yes, We have a professional QC team to make sure that the products are in good condition before sending out the goods.
